61~64일차 스프링 [ xml로 Board 만들기 ]

1) Dynamic project 생성 -> Configure -> Convert to Maven



2) pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/maven-v4_0_0.xsd">
   <modelVersion>4.0.0</modelVersion>
   <groupId>kr.board</groupId>
   <artifactId>controller</artifactId>
   <name>Test</name>
   <packaging>war</packaging>
   <version>1.0.0-BUILD-SNAPSHOT</version>
   <properties>
      <java-version>1.6</java-version>
      <org.springframework-version>5.0.2.RELEASE</org.springframework-version>
      <org.aspectj-version>1.6.10</org.aspectj-version>
      <org.slf4j-version>1.6.6</org.slf4j-version>
   </properties>
   <dependencies>
      <!-- Spring -->
      <dependency>
         <groupId>org.springframework</groupId>
         <artifactId>spring-context</artifactId>
         <version>${org.springframework-version}</version>
         <exclusions>
            <!-- Exclude Commons Logging in favor of SLF4j -->
            <exclusion>
               <groupId>commons-logging</groupId>
               <artifactId>commons-logging</artifactId>
            </exclusion>
         </exclusions>
      </dependency>
      <dependency>
         <groupId>org.springframework</groupId>
         <artifactId>spring-webmvc</artifactId>
         <version>${org.springframework-version}</version>
      </dependency>

      <!-- AspectJ -->
      <dependency>
         <groupId>org.aspectj</groupId>
         <artifactId>aspectjrt</artifactId>
         <version>${org.aspectj-version}</version>
      </dependency>

      <!-- Logging -->
      <dependency>
         <groupId>org.slf4j</groupId>
         <artifactId>slf4j-api</artifactId>
         <version>${org.slf4j-version}</version>
      </dependency>
      <dependency>
         <groupId>org.slf4j</groupId>
         <artifactId>jcl-over-slf4j</artifactId>
         <version>${org.slf4j-version}</version>
         <scope>runtime</scope>
      </dependency>
      <dependency>
         <groupId>org.slf4j</groupId>
         <artifactId>slf4j-log4j12</artifactId>
         <version>${org.slf4j-version}</version>
         <scope>runtime</scope>
      </dependency>
      <dependency>
         <groupId>log4j</groupId>
         <artifactId>log4j</artifactId>
         <version>1.2.15</version>
         <exclusions>
            <exclusion>
               <groupId>javax.mail</groupId>
               <artifactId>mail</artifactId>
            </exclusion>
            <exclusion>
               <groupId>javax.jms</groupId>
               <artifactId>jms</artifactId>
            </exclusion>
            <exclusion>
               <groupId>com.sun.jdmk</groupId>
               <artifactId>jmxtools</artifactId>
            </exclusion>
            <exclusion>
               <groupId>com.sun.jmx</groupId>
               <artifactId>jmxri</artifactId>
            </exclusion>
         </exclusions>
         <scope>runtime</scope>
      </dependency>

      <!-- @Inject -->
      <dependency>
         <groupId>javax.inject</groupId>
         <artifactId>javax.inject</artifactId>
         <version>1</version>
      </dependency>

      <!-- Servlet 변경 -->
      <dependency>
         <groupId>javax.servlet</groupId>
         <artifactId>javax.servlet-api</artifactId>
         <version>3.1.0</version>
         <scope>provided</scope>
      </dependency>

      <dependency>
         <groupId>javax.servlet.jsp</groupId>
         <artifactId>javax.servlet.jsp-api</artifactId>
         <version>2.3.1</version>
         <scope>provided</scope>
      </dependency>

      <dependency>
         <groupId>javax.servlet</groupId>
         <artifactId>jstl</artifactId>
         <version>1.2</version>
      </dependency>

      <dependency>
         <groupId>com.fasterxml.jackson.core</groupId>
         <artifactId>jackson-databind</artifactId>
         <version>2.9.8</version>
      </dependency>

      <!-- Test -->
      <dependency>
         <groupId>junit</groupId>
         <artifactId>junit</artifactId>
         <version>4.7</version>
         <scope>test</scope>
      </dependency>

      <dependency>
         <groupId>mysql</groupId>
         <artifactId>mysql-connector-java</artifactId>
         <version>8.0.16</version>
      </dependency>

      <dependency>
         <groupId>org.springframework</groupId>
         <artifactId>spring-jdbc</artifactId>
         <version>5.0.2.RELEASE</version>
      </dependency>

      <dependency>
         <groupId>com.zaxxer</groupId>
         <artifactId>HikariCP</artifactId>
         <version>3.4.1</version>
      </dependency>

      <dependency>
         <groupId>org.mybatis</groupId>
         <artifactId>mybatis</artifactId>
         <version>3.4.6</version>
      </dependency>

      <dependency>
         <groupId>org.mybatis</groupId>
         <artifactId>mybatis-spring</artifactId>
         <version>1.3.2</version>
      </dependency>

      <dependency>
         <groupId>org.projectlombok</groupId>
         <artifactId>lombok</artifactId>
         <version>1.18.12</version>
         <scope>provided</scope>
      </dependency>

   </dependencies>
   <build>
      <plugins>
         <plugin>
            <artifactId>maven-eclipse-plugin</artifactId>
            <version>2.9</version>
            <configuration>
               <additionalProjectnatures>
                  <projectnature>org.springframework.ide.eclipse.core.springnature</projectnature>
               </additionalProjectnatures>
               <additionalBuildcommands>
                  <buildcommand>org.springframework.ide.eclipse.core.springbuilder</buildcommand>
               </additionalBuildcommands>
               <downloadSources>true</downloadSources>
               <downloadJavadocs>true</downloadJavadocs>
            </configuration>
         </plugin>
         <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-compiler-plugin</artifactId>
            <version>2.5.1</version>
            <configuration>
               <source>1.8</source>
               <target>1.8</target>
               <compilerArgument>-Xlint:all</compilerArgument>
               <showWarnings>true</showWarnings>
               <showDeprecation>true</showDeprecation>
            </configuration>
         </plugin>
         <plugin>
            <groupId>org.codehaus.mojo</groupId>
            <artifactId>exec-maven-plugin</artifactId>
            <version>1.2.1</version>
            <configuration>
               <mainClass>org.test.int1.Main</mainClass>
            </configuration>
         </plugin>
      </plugins>
   </build>
</project>



3) src/main/webapp/WEB-INF -> web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="2.5" xmlns="http://java.sun.com/xml/ns/javaee"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">

    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
           <param-name>encoding</param-name>
           <param-value>UTF-8</param-value>
        </init-param>
        <init-param>
           <param-name>forceEncoding</param-name>
           <param-value>true</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!-- The definition of the Root Spring Container shared by all Servlets and Filters -->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>/WEB-INF/spring/root-context.xml</param-value>
    </context-param>

    <!-- Creates the Spring Container shared by all Servlets and Filters -->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

    <!-- Processes application requests -->
    <servlet>
        <servlet-name>appServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>/WEB-INF/spring/appServlet/servlet-context.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>

    <servlet-mapping>
        <servlet-name>appServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

</web-app>



4) src/main/webapp/WEB-INF -> spring 폴더 생성 -> appServlet 폴더 생성 -> servlet-context.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns="http://www.springframework.org/schema/mvc"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:beans="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd
		http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd">

	<!-- DispatcherServlet Context: defines this servlet's request-processing infrastructure -->

	<!-- Enables the Spring MVC @Controller programming model -->
	<annotation-driven />

	<!-- Handles HTTP GET requests for /resources/** by efficiently serving up static resources in the ${webappRoot}/resources directory -->
	<resources mapping="/resources/**" location="/resources/" />

	<!-- Resolves views selected for rendering by @Controllers to .jsp resources in the /WEB-INF/views directory -->
	<beans:bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<beans:property name="prefix" value="/WEB-INF/views/" />
		<beans:property name="suffix" value=".jsp" />
	</beans:bean>

	<context:component-scan base-package="kr.bit.controller" />



</beans:beans>



5) src/main/webapp/WEB-INF -> spring 폴더 -> root-context.xml 기본 셋팅 -> DB 연결 셋팅

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                           http://www.springframework.org/schema/beans/spring-beans.xsd">

</beans>

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:mybatis-spring="http://mybatis.org/schema/mybatis-spring"
	xsi:schemaLocation="http://mybatis.org/schema/mybatis-spring http://mybatis.org/schema/mybatis-spring-1.2.xsd
		http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd">


	<bean id="hikariConfig" class="com.zaxxer.hikari.HikariConfig">
		<property name="driverClassName" value="com.mysql.cj.jdbc.Driver"/>
		<property name="jdbcUrl" value="jdbc:mysql://localhost:3306/yujung?serverTimezone=UTC"/>
		<property name="username" value="root"/>
		<property name="password" value="00000000"/>
	</bean>

	<bean id="dataSource" class="com.zaxxer.hikari.HikariDataSource"
	                                                destroy-method="close">
      <constructor-arg ref="hikariConfig" />
    </bean>

    <mybatis-spring:scan base-package="kr.bit.mapper"/>

    <bean class="org.mybatis.spring.SqlSessionFactoryBean">
       <property name="dataSource" ref="dataSource" />
    </bean>

</beans>



6) src/main/webapp/WEB-INF -> views 폴더  -> home.jsp





7) src/main/java -> kr.bit.entity package 생성 -> Board.java class 생성 (이제부턴 Beans 대신 Entity 사용)

     @Data 어노테이션을 이용하면 Getter&Setter, toString ... 생략 가능 / 또한 lombok을 사용했기 때문에 Date 대신 String 사용

package kr.bit.entity;
import lombok.Data;

@Data //- Lombok API
public class Board {
  public int idx; // 번호
  public String title; // 제목
  public String content; // 내용
  public String writer; // 작성자
  public String indate; // 작성일
  public int count; // 조회수
  // setter , getter
}



8) src/main/java -> kr.bit.mapper package 생성 -> BoardMapper.java Interface 생성, BoardMapper.xml xml 생성

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >



9) src/main/java -> kr.bit.controller package 생성 -> BoardController.java class 생성

     객체 타입 Cotroller 리턴 반환

     (서버 쪽에서 .getList()함수 호출 해서 boardMapper DB에 있는 데이터 싹다 뽑아서 list에 전달&저장 하겠단 의미)

package kr.bit.controller;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.validation.BindingResult;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.ResponseBody;

import kr.bit.entity.Board;
import kr.bit.mapper.BoardMapper;

@Controller
public class BoardController{

	@Autowired
	BoardMapper boardMapper;

	@RequestMapping("/")
	public String home() {
		return "home";
	}

	@RequestMapping("/boardList")
	public @ResponseBody List<Board> boardList(){
		List<Board> list=boardMapper.getLists();
		return list;
	}

	@RequestMapping("/boardInsert")
	public @ResponseBody void boardInsert(Board vo){
		boardMapper.boardInsert(vo);
	}

	@RequestMapping("/boardDelete")
	public @ResponseBody void boardDelete(@RequestParam("idx") int idx) {
		boardMapper.boardDelete(idx);
	}
}



10) MySQL bitboard table 생성

use yujung;

create table bitboard(
	idx int not null auto_increment,
    title varchar(50) not null,
    content varchar(100) not null,
    writer varchar(20) not null,
    indate datetime default now(), -- 작성날자
    count int default 0, -- 조회수
    primary key(idx));

desc bitboard;

insert into bitboard(title, content, writer)
values ('제목1','내용1','홍길동');

insert into bitboard(title, content, writer)
values ('제목2','내용2','이길동');

insert into bitboard(title, content, writer)
values ('제목3','내용3','김길동');



11) xml을 활용해서 하는 프로젝트이기 때문에 Dao, Service 대신 -> BoardMapper.java와 BoardMapper.xml 사용

      메서드 이름과 xml의 id 이름이 같아야지만 쿼리문이 실행 됨 !!!

     (BoardMapper.xml에서 쿼리문을 작성해도 되고 BoardMapper에서 @어노테이션을 줘서 작성해도 됨 ! 둘다 상괸 없음)

package kr.bit.mapper;

import java.util.List;

import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Update;

import kr.bit.entity.Board;

@Mapper  // Mybatis API
public interface BoardMapper {

	public List<Board> getLists();

	public void boardInsert(Board vo);

	public Board boardContent(int idx);

	public void boardDelete(int idx);

	public void boardUpdate(Board vo);

	@Update("UPDATE bitboard SET count=count+1 WHERE idx=#{idx}")
	public void boardCount(int idx);

}



12) BoardMapper.xml에 namespacce 값을 적어줘야지만 연동이 됨

       <mapper namespace="kr.bit.mapper.BoardMapper">

       메서드 이름과 xml의 id 이름이 같아야지만 쿼리문이 실행 됨 !!!

       select는 resultType 값이 있어야 됨, insert&delete&update는 parameterType 값이 있어야 함

      (이때 delete는 기본형만 적음, 나머지는 패키지명이랑 클래스명까지 다 적어줌)

       즉, BoardMapper.java에서 getLists() 함수 호출을 하면 BoardMapper.xml에 id="getLists"의 쿼리문이 실행 됨

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="kr.bit.mapper.BoardMapper">

    <select id="getLists" resultType="kr.bit.entity.Board">
        SELECT * FROM bitboard ORDER BY idx DESC
    </select>

    <insert id="boardInsert" parameterType="kr.bit.entity.Board">
        INSERT INTO bitboard(title, content, writer) VALUES(#{title}, #{content}, #{writer})
    </insert>

    <select id="boardContent" resultType="kr.bit.entity.Board">
        SELECT * FROM bitboard WHERE idx=#{idx}
    </select>

    <delete id="boardDelete" parameterType="int">
        DELETE FROM bitboard WHERE idx=#{idx}
    </delete>

    <update id="boardUpdate" parameterType="kr.bit.entity.Board">
        UPDATE bitboard SET title=#{title}, content=#{content} WHERE idx=#{idx}
    </update>

</mapper>



13) views 폴더 안에 home.jsp 파일 -> c코어 , bootstrap 사용 / <head></head>에 <script>작성 $(document) $.ajax({})

      <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>

<%@ page language="java" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1">
<link rel="stylesheet"
	href="https://maxcdn.bootstrapcdn.com/bootstrap/3.4.1/css/bootstrap.min.css">
<script
	src="https://ajax.googleapis.com/ajax/libs/jquery/3.6.0/jquery.min.js"></script>
<script
	src="https://maxcdn.bootstrapcdn.com/bootstrap/3.4.1/js/bootstrap.min.js"></script>
<script type="text/javascript">
     $(document).ready(function(){
    	loadBoard();
     });
     function loadBoard(){

    	$.ajax({
    		url : "boardList",
    		type : "get",
    		dataType : "json",
    		success : make,
    		error : function(){ alert("error");  }
    	});
     }
     function make(data){
    	 var li="<table class='table table-bordered'>";
    	 li+="<tr>";
    	 li+="<td>번호</td>";
    	 li+="<td>제목</td>";
    	 li+="<td>작성자</td>";
    	 li+="<td>작성일</td>";
    	 li+="<td>조회수</td>";
    	 li+="</tr>";
    	 $.each(data, function(index,obj){
    		 li+="<tr>";
    		 li+="<td>"+obj.idx+"</td>";
    		 li+="<td id='tit"+obj.idx+"'><a href='javascript:goContent("+obj.idx+")'>"+obj.title+"</a></td>";
    		 li+="<td>"+obj.writer+"</td>";
    		 li+="<td>"+obj.indate.split(' ')[0]+"</td>";
    		 li+="<td id='cnt"+obj.idx+"'>"+obj.count+"</td>";
    		 li+="</tr>";

    		 li+="<tr id='con"+obj.idx+"' style='display:none'>";
    		 li+="<td>내용</td>";
    		 li+="<td colspan='4'>";
    		 li+="<textarea id='ta"+obj.idx+"' readonly rows='7' class='form-control'></textarea>";
    		 li+="<br/>";
    		 li+="<span id='up"+obj.idx+"'><button class='btn btn-success btn-sm' onclick='goUpdateForm("+obj.idx+")'>수정화면</button></span>&nbsp;";
    		 li+="<button class='btn btn-danger btn-sm' onclick='goDelete("+obj.idx+")'>삭제</button>";
    		 li+="</td>";
    		 li+="</tr>";

    	 } );
    	 li+="<tr>";
    	 li+="<td colspan='5'>";
    	 li+="<button class='btn btn-primary btn-sm' onclick='getForm()'>글작성</button>";
    	 li+="</td>";
    	 li+="</tr>";
    	 li+="</table>";
    	 $("#view").html(li);

    	 $("#view").css("display","block");
      	 $("#wfrom").css("display","none");
     }

     function getForm(){
    	$("#view").css("display","none");   //게시글 목록은 안 보임
    	$("#wfrom").css("display","block"); //글작성 폼은 보임
     }

     function goList(){
     	$("#view").css("display","block");
     	$("#wfrom").css("display","none");
      }

</script>
</head>
<body>

	<div class="container">
  <h2>Spring Legacy</h2>
  <div class="panel panel-default">
    <div class="panel-heading">게시판</div>
    <div class="panel-body" id="view">본문</div>
    <div class="panel-body" id="wfrom">
     <form id="frm">
      <table class="table">
         <tr>
           <td>제목</td>
           <td><input type="text" id="title" name="title" class="form-control"/></td>
         </tr>
         <tr>
           <td>내용</td>
           <td><textarea rows="7" class="form-control" id="content" name="content"></textarea> </td>
         </tr>
         <tr>
           <td>글쓴이</td>
           <td><input type="text" id="writer" name="writer" class="form-control"/></td>
         </tr>
         <tr>
           <td colspan="2" align="center">
               <button type="button" class="btn btn-success btn-sm" onclick="goInsert()">등록</button>
               <button type="reset" class="btn btn-warning btn-sm" id="formclear">취소</button>
               <button type="button" class="btn btn-info btn-sm" onclick="goList()">리스트</button>
           </td>
         </tr>
      </table>
     </form>
    </div>
    <div class="panel-footer">비트캠프</div>
  </div>
</div>

</body>
</html>



14) home.jsp에서 수정누르면 제목부분 idx값 접근해서 글 수정할 수 있게 -> 제목은 계속 떠야함

      작성일에 날짜만 나오도록 시간은 안 나오게 split





왼쪽화면 : 초기화면 글작성 버튼을 누르면 -> 오른쪽화면으로(게시글리스트는 사라짐)

15)

























---

[ Controller의 리턴 타입 ] - 대부분 String , 객체 타입

   - String : jsp 파일의 경로와 파일 이름을 나타내기 위해서 사용

   - void : 호출하는 URL과 동일한 이름의 jsp를 의미

   - 객체 타입 : 주로 JSON 타입의 데이터를 만들어서 반환하는 용도 {"id":"yujung", "pw":1234}

   - ResponseEntity 타입 : response할 때 Http헤더 정보와 내용을 가공하는 용도

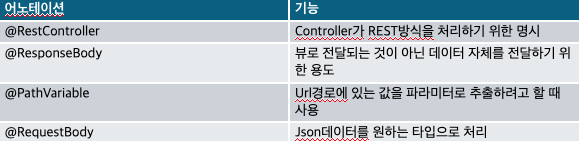

[ @RequestBody, @ResponseBody ]

    : 스프링 프레임워크에서 비동기 통신, API 통신을 구현하기 위해 @RequestBody, @ResponseBody를 사용할 수 있다.

    @RequestBody : 클라이언트 -> 서버 요청 (json기반의 HTTP Body를 자바 객체로 변환)

    @ResponseBody : 서버 -> 클라이언트 응답 (자바 객체를 json기반의 HTTP Body로 변환)



[ REST 방식 / Ajax ]

     : 브라우저에서 순수 데이터만을 전달할 수 있음 => 서버는 클라이언트의 요청 결과를 xml, json형태로 전달하고,

       브라우저에서는 이를 가공하여 사용자에게 보여주는 방식

       Ex) 만약 하나의 페이지(jsp)에서 두가지 일을 처리해야 할 경우 게시판 리스트와 로그인을 출력하는 일

             - 동기식 처리방식 : 1번일이 끝날때까지 기다린 후 2번일을 처리하는 방식(응답시간이 길어지며 화면이 바뀐다)

             - 비동기식 처리방식 : 1번 일과는 상관없이 2번일을 처리하는 방식(응답시간이 빠르고, 화면전환이 없다)

                                              => 콜백함수를 만들어 처리하게 해야한다

[ 콜백함수 ]

      : 클라이어트가 서버로 요청 후 서버에서 응답하는 데이터를 클라이언트에서 받아서 처리하는 함수

[ Ajax 동작 방식 ]

$.ajax(
  type : "post" or "get",
  url : "요청할 url",
  data : { 서버로 전송할 데이터},
  dataType : "서버에서 전송받을 데이터 형식",
  success : function(서버로부터 데이터 받기){     // 정상 요청, 응답시 처리
                      },
      error : function(오류정보) {     // 오류 발생시 처리
                  }
);



[ REST - REpresentational State Transfer ]

     : URI + 요청방식
